The two main pillars of the Black Hole Mapper project are: i) time domain studies of quasars, and ii) large scale spectroscopic follow up of X-ray selected sources. This core is complemented by a small number of supplementary BHM programs, which increase the scientific grasp of the project.

BHM Time-Domain Programs

The BHM optical (BOSS) repeat spectral time-domain programs emphasize the astrophysics of quasars, including studies of BH masses, binarity, accretion physics and events, broad line region (BLR) dynamics, outflows, etc., requiring spectral sampling at a broad range of timescales/cadence, ranging from days to decades; this is achieved via the AQMES and RM programs.

TierNo. of ~15 min BOSS
exposures per epoch
(mag limits)		Approx no.
of epochs
to be obtained
per field		Approx. no.
of fields		Approx. total
no. of targets
AQMES
WIDE		4 (i<19.1)1-3400-500
(mainly North)		~20,000
AQMES
MEDIUM		4 (i<19.1)~1035-40
(mainly North)		~2000
RM8 (i<~21)50-1505*
(North+South)		1000-1500
*This count includes a new RM field (ELIAS-S1), which was recently added to the survey plan. Observations of that field will start in 2026, and will be included in future SDSS data releases.

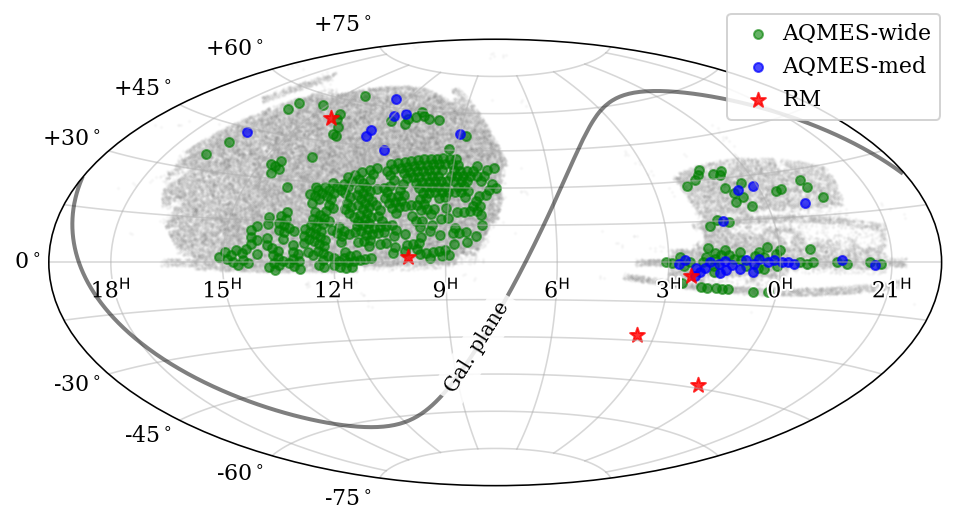

The repeat spectroscopy time-domain (TD) component of BHM is mainly in the North, as the AQMES core and AQMES-related ancillary programs rely strongly on optically bright (i<19.1AB) QSOs taken from the DR16 quasar catalog (depicted in grey above). Three of the five RM fields (red stars) are Northern/equatorial and are observed from APO, with two Southern RM fields observed from LCO. The majority of the AQMES-Wide fields (green) are designed to mostly overlap with the eROSITA-DE hemisphere. In order to balance the LST distribution of the survey, the AQMES-Wide fields (blue) are mostly located in the Southern Galactic Cap region.

AQMES (All-Quasar Multi-Epoch Spectroscopy)

The AQMES core program includes both a wide-area and low-cadence tier, as well as a modest-area and modest cadence tier, adding new epochs in SDSS-V to quasars/AGN also with at least one previous epoch of SDSS I to IV spectra, i.e. selected from the DR16 quasar catalog (Lyke et al., 2020)

  • AQMES-Wide: For ~20,000 quasars, at least one more epoch will be added during SDSS-V, and combined with earlier-epoch SDSS spectra, sampling ~1-10 yr timescales, e.g., to probe the BLR dynamics of the most massive BHs, statistics of changing look quasars, broad absorption line (BAL) disappearance/emergence, etc. (this is a wide area, but low-cadence time-domain tier; ~2000 deg2). For a significant minority of these AQMES-Wide fields, we aim to obtain two or more epochs within SDSS-V.
  • AQMES–Medium: For ~2000 quasars, ~10 epochs added in SDSS-V, probing down to ~1-month to 1-year timescales, allowing one to monitor more closely the unfolding BLR structural and dynamical changes (a medium tier in area and cadence; ~200 deg2).

In addition, we will repeatedly observe fainter QSOs within the dedicated AQMES-Wide and AQMES-Medium fields, as well as opportunistically targeting known QSOs outside of that area, where fiber-resources permit.

For more details please see the dedicated AQMES page.

RM (Reverberation Mapping)

  • Reverberation Mapping (RM; another core BHM program) targets ~103 quasars in 5 dedicated fields. We will obtain optical (BOSS) repeat spectra with an intensive cadence of 50-150 epochs per field, sampling down to few-day timescales. The lags between the continuum and BLR emission yield BH masses, allowing RM measurements for quasars spanning a broad range of luminosity and redshift. This is a small area (~30 deg2), but intensive-cadence tier.

For more details please see the dedicated Reverberation Mapping page.

BHM X-ray Follow-up Programs

BHM is pursuing optical (BOSS) spectroscopic follow-up of X-ray sources including a large core program (SPIDERS) relying on eROSITA X-ray data , and a more modest program relying on Chandra archival X-ray data.

SPIDERS (SPectroscopic IDentfication of ERosita Sources)

The main goal of the core SPIDERS program is to provide a complete and homogeneous optical spectroscopic followup of X-ray sources (both point-like and extended) detected by eROSITA (in ~ 10,000 deg2 at high-Galactic latitude, within the German or ‘DE’ half of the sky). The core SPIDERS program uses X-ray data from eROSITA’s first 1.5 years of survey operations (which began in 2019). An early SDSS-V/SPIDERS project (released in DR18) obtained spectroscopic follow-up over the eFEDS mini-survey.

  • The wide area component of SPIDERS utilizes data through eRASS:3 (first 3 eROSITA all-sky scans), and aims to obtain the optical spectroscopic identifications and redshifts, evolution, and astrophysics of ~300,000 X-ray source counterparts, especially AGN (but also including ~104 X-ray emitting clusters of galaxies).
  • The SPIDERS/eFEDS program (beginning in SDSS-IV and completed in the first year of SDSS-V operations) collected BOSS spectroscopy for ~104 candidate counterparts, located within a 140 deg2 region of the sky that was observed by eROSITA as part of its performance verification phase. The SDSS-V optical spectra of eFEDS targets formed a centerpiece of the DR18 data release. See Aydar et al., (2025) for more details.

The core samples of SPIDERS targets rely on optical counterparts selected from the DESI Legacy Surveys catalogues. In order to complete the sky coverage ( particularly towards lower Galactic latitudes) the core program is supplemented by additional SPIDERS targets selected via optical imaging surveys; primarily Gaia, but also supported by Pan-STARRS, SkyMapper and SuperCosmos.

ComponentNo. of ~15 min BOSS
exposures per epoch
(mag limits)		Approx no.
of epochs
to be obtained		Approx. no.
of fields		Approx. total
no. of targets
SPIDERS
(main)		3-4 (i<21.5)~1*~800** (N) +
~2300 (S)		>250,000
eFEDS~4 (i<21.5)~137
(equatorial)		>10,000
*A subset of SPIDERS-led fields are allocated a cadence which splits the exposures over two or more nights; for the purposes of SPIDERS science these are typically considered as a single epoch.
**Includes fields that are led by other programs (e.g. AQMES-Wide), but that are compatible with SPIDERS observational requirements.
This equatorial map shows the distribution on the sky of X-ray selected BHM SPIDERS targets (AGN and Cluster candidates), derived from the eRASS:3 source catalog. The majority of the high-latitude eROSITA-DE (Western Galactic Hemisphere) portion of the sky lies in the South, and so is mostly observed from LCO. The solid grey curve shows the Galactic plane.

For more details please see the dedicated SPIDERS page.

CSC (Chandra Source Catalog)

A related, more modest, program of mainly optical (BOSS) spectroscopy of X-ray counterparts (but including some IR APOGEE spectra as well), involves tens of thousands of X-ray source counterparts selected from the Chandra Source Catalog.

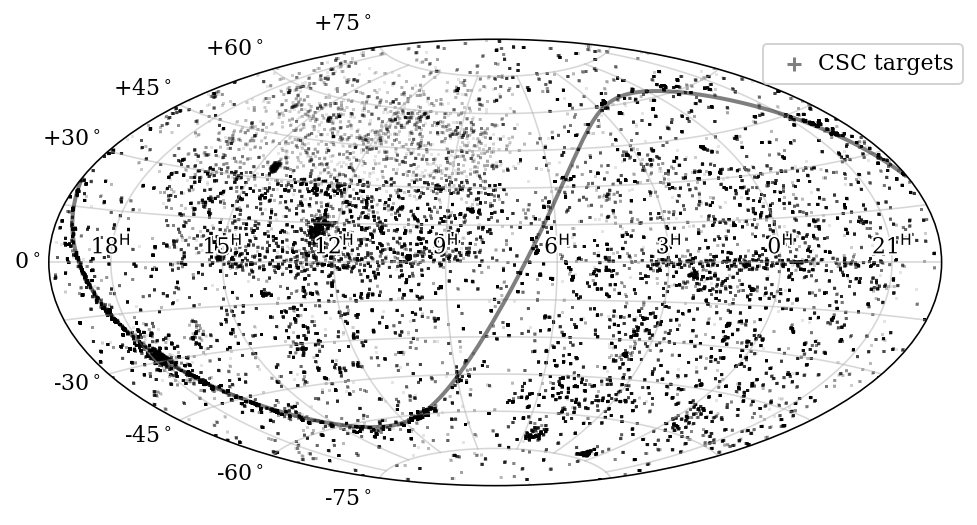

This equatorial map shows the distribution on the sky of BHM CSC targets. The solid grey curve shows the Galactic plane.

For more details please see the dedicated CSC page.

BHM Ancillary programs

In order to usefully use spare BOSS fiber-hours, the BHM team have devised two lower priority filler programs, targeting i) optical/IR selected QSOs (via the GUA, ASQOSS and Quaia samples) and ii) bright low redshift galaxies (selected from DESI LegacySurvey imaging). In addition, a number of programs within the SDSS-V openfiber framework are targeting samples of AGN, QSOs and other extragalactic targets.

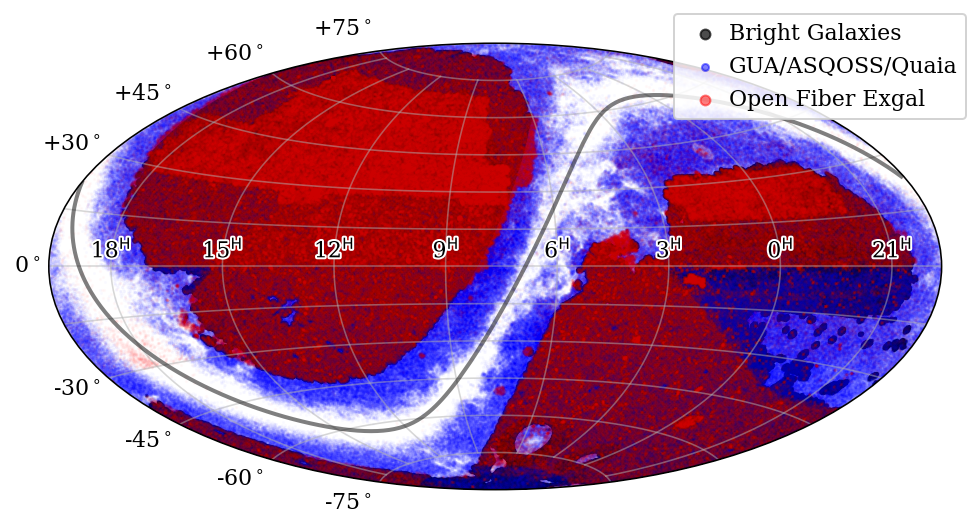

This equatorial map shows the sky distribution of targets from the BHM Ancillary Programs and the various extragalactic openfiber programs. The solid grey curve shows the Galactic plane.

For more details please see the dedicated BHM Ancillary Programs page.
